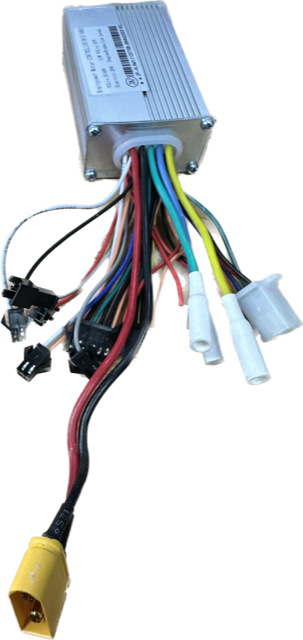

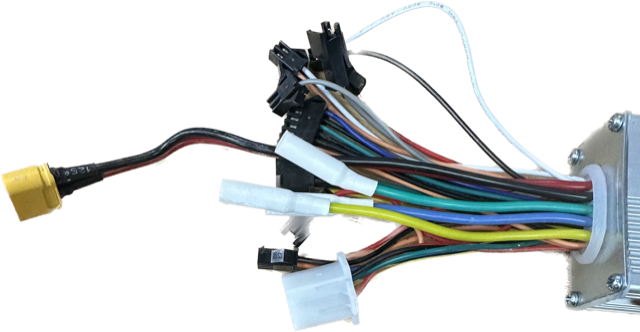

The Control Module Brain for the Neo Eagle 500w Electric Scooter HP154 is a sophisticated piece of hardware designed to act as the central processing unit for your electric vehicle. Known as model WYJ-V05, this unit is specifically engineered to bridge the gap between user input and mechanical performance. It ensures that every ounce of the 500w motor's potential is utilized efficiently while maintaining the integrity of the electrical system. For those looking to replace a faulty unit or simply seeking a more responsive riding experience, this control module provides the necessary logic to manage acceleration, speed, and safety protocols. It is an essential component for maintaining the high standards expected from the Neo Eagle series.

Safety Features

• Integrated low voltage cutoff set at 37V to protect the battery from over-discharge
• Responsive low-level degree braking system for improved stopping precision
• Intelligent current management to prevent electrical surges or overheating
• High-quality insulation to protect against short circuits
• Stable power delivery to ensure consistent handling at high speeds

Build Quality & Material

Constructed with industrial-grade electronic components and a durable outer casing, the WYJ-V05 model is built to survive the vibrations and temperature fluctuations common in daily commuting. The internal circuitry is protected by a robust heat-dissipating shell, ensuring that the unit remains cool even under heavy load. The wiring is color-coded for ease of identification and manufactured with high-conductivity materials to reduce energy loss. This meticulous attention to material selection guarantees longevity and reliability in various environmental conditions, from urban heat to cooler morning rides.

Age & Weight

Capacity

• Designed for scooters typically used by riders aged 14 and above
• Supports the standard weight capacity of the Neo Eagle 500w HP154 chassis
• Engineered to handle rider weights up to 100Kg under normal operation
• Recommended for users with basic technical knowledge for DIY installation

Functions

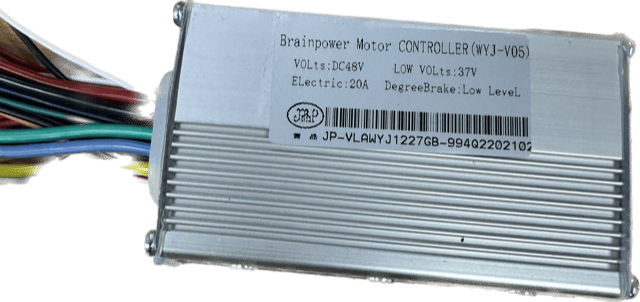

This 48V DC module acts as the brain of the scooter, processing throttle signals and translating them into smooth motor movement. With a 20A current capacity, it manages energy distribution with high precision, allowing for rapid acceleration without sacrificing stability. The low-level brake feature communicates instantly with the motor to cut power when the brakes are engaged, ensuring safety. It also monitors the battery's state of charge, engaging the 37V cutoff to ensure the lithium cells are never drained to a point of permanent damage.

Design

The design of the WYJ-V05 focuses on compact efficiency and seamless integration. Its footprint is specifically tailored to fit within the internal housing of the Neo Eagle HP154, allowing for a clean installation without bulky modifications. The external ports are positioned to align with the scooter's original wiring harness, facilitating a plug-and-play experience for many users. The sleek, metallic finish of the casing not only aids in heat dissipation but also reflects the high-tech nature of the hardware inside.

Key Features

• Tailored specifically for the Neo Eagle 500w Electric Scooter HP154
• High-efficiency DC 48V power management for optimized motor performance
• Reliable 20A current handling for stable high-speed operation
• Safety-focused low voltage cutoff protection at 37V
• Precision low-level degree braking for immediate motor cutoff
• Durable, heat-resistant construction for long-term reliability
• Simplified installation process with compatible wiring connectors
• Enhanced throttle response for smoother acceleration and control

Summary

The WYJ-V05 Control Module Brain is the ultimate upgrade for your Neo Eagle 500w HP154. By offering superior power efficiency, advanced safety features like the 37V low voltage cutoff, and precise braking control, it ensures your scooter runs at its peak. Experience a safer, more responsive ride with this essential component.
